Contact Form : SPST , SPDT
Max. Allowable Current : 30A
Coil Type : Standard & High Sensitivity DC
Features
-
Designed for 30A switching load to comply with automotive system use.
-
Compatible plug-in terminal available.
-
Standard type contact form SPDT and SPST are available for customer’s selection.
-
Operating ambient temperature range from -40ºC to +125ºC.
-
Comply with RoHS, REACH and ELV regulations.
Download
Technical Product Information

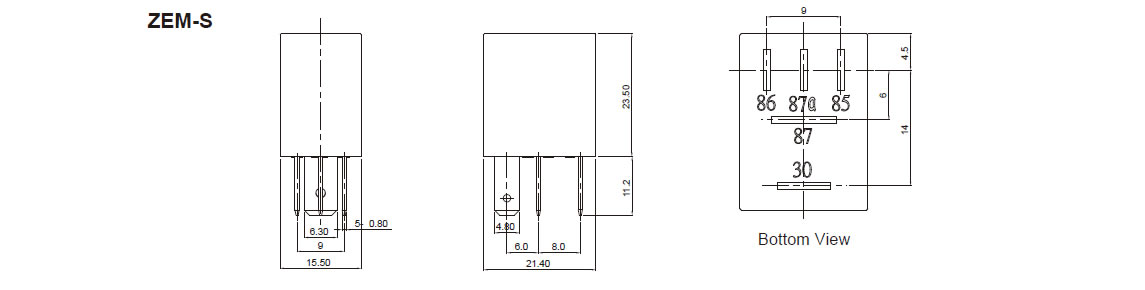

Dimension

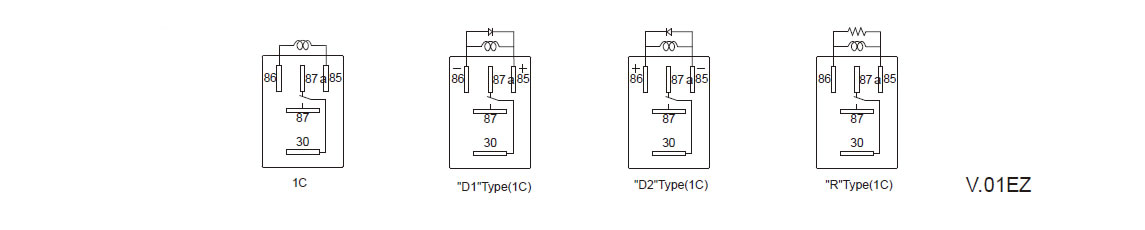

Electric Diagrams
