Contact Form : SPST
Max. Allowable Current : 16A
Coil Type : Standard DC
Features
-
High switching current at 16A in small size.
-
1 N/O contact with a Tungsten pre-make contact.
-
Dielectric Strength up to 5,000VAC.
-
1 pole 16 A, 1 NO contact(W pre-make contact + AgSnO2).
165 A / 20 ms inrush peak current. -
Comply with RoHS and REACH regulations.
Download
Technical Product Information

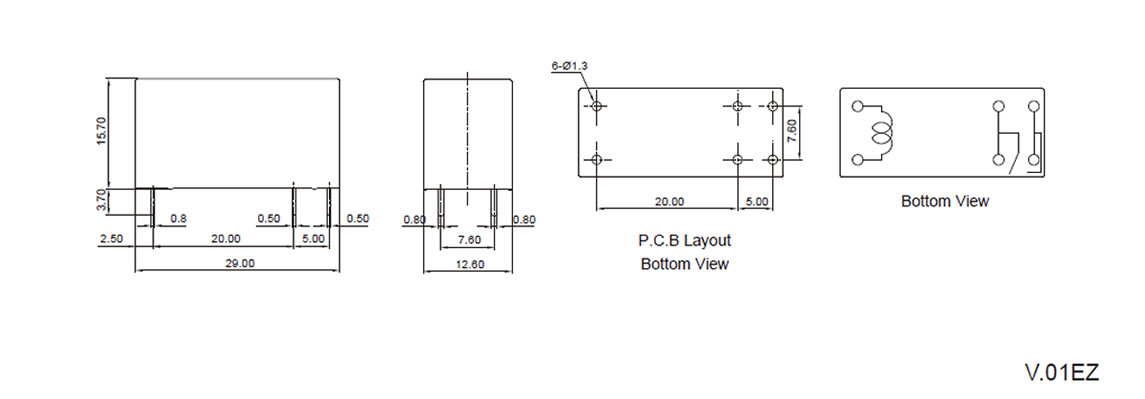

Dimension
