SAM Reley

Contact Form : SPST , SPDT , DPST , DPDT

Max. Allowable Current : 15A

Coil Type : Standard DC



Features

  • Miniature size 12.1x17.2x16.2mm on SAM-1P for smaller occupying space.

  • Easy P.C. Board design available as the location of contact terminal separated from each contact.

  • Distinctive twin relay structure on SAM-2P providing high performance for the use of automotive.

  • Both washable and flux proofed types available.

  • Comply with RoHS, REACH and ELV regulations.

Download

Technical Product Information

SAM-Relay.pdf

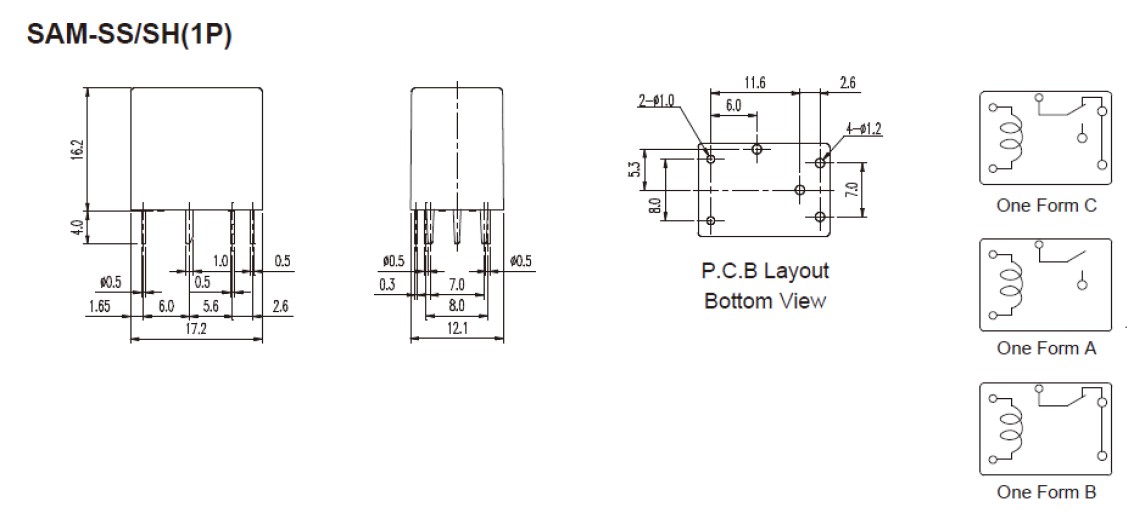

Dimension

SAM CAD





Tags: SPST(1A1B)SPDT (1C)DPST (2A 2B)DPDT (2C)10A15ADC 5VDC 6VDC 9VDC 12VDC 18VDC 24VSAM
