Contact Form : SPST

Max. Allowable Current : 12A , 16A

Coil Type : High Sensitivity DC

product icon 2 1

Features

  • Miniature size with low power consumption for rated loading up to 16A.

  • Surge Strength up to 10,000V.

  • Operating temperature up to 105°C.

  • UL Class F insulation available.

  • Comply with RoHS and REACH regulations.

  • 3-in-1 combo available with THR reflow solderable + Halogen Free + IEC 60335-1 GWT Compliance.

Download

Technical Product Information

GQ_Relay (16A with reflow)

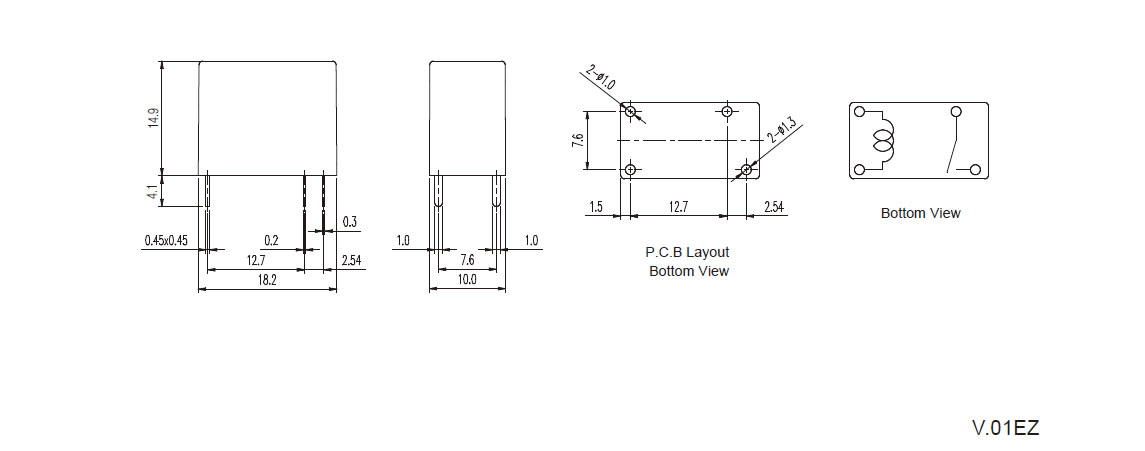

Dimension

GQ cad

Tags: SPST(1A1B)5A12ADC 3VDC 5VDC 6VDC 9VDC 12VDC 15VDC 18VDC 24VDC 48VGQ
