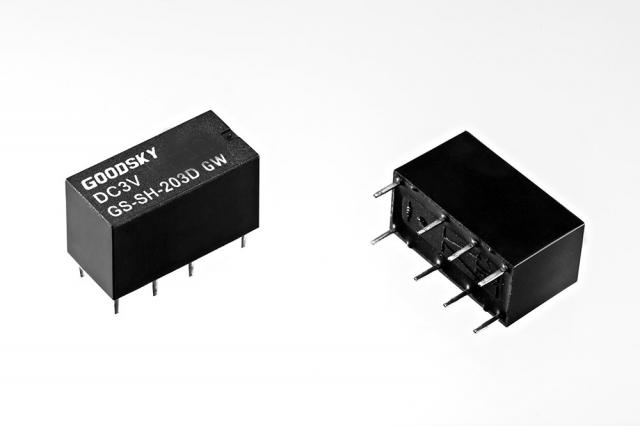

 DC Relay

Contact Form : DPDT

Max. Allowable Current : 2A

Coil Type : Standard DC , Medium DC , High DC

product icon

Features

  • Gold Silver alloy contact good for low switching application.

  • 2.54mm terminal pitch employment equivalent to I.C. Terminal.

  • Different types of coil sensitivity available to meet user’s selection.

  • Plastic epoxy resin sealed type for washing procedure.

  • Comply with RoHS and REACH regulations.

Download

Technical Product Information

GS-Relay.pdf

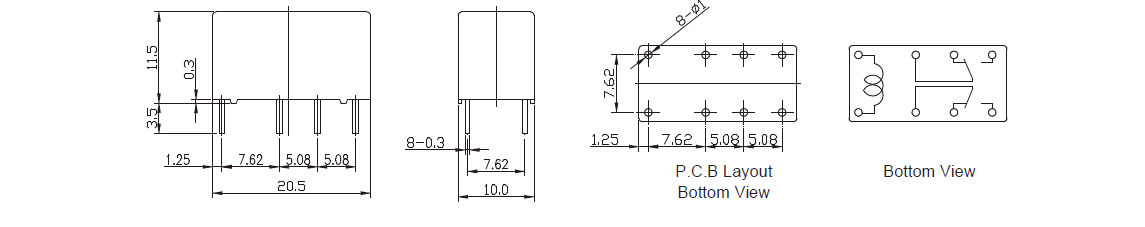

Dimension

GS cad

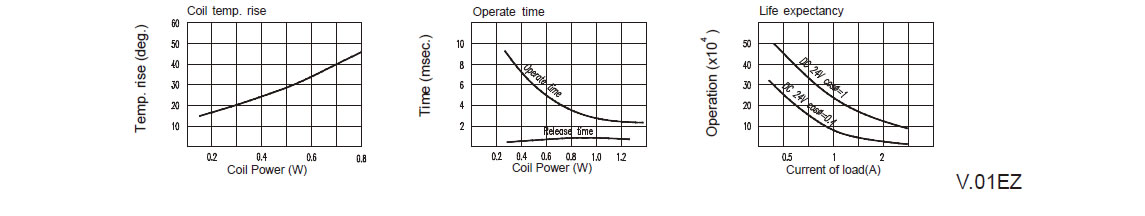

Reference Data

GS data

Tags: DPDT (2C)2ADC 3VDC 5VDC 6VDC 9VDC 12VDC 24VAC 48VGS
