EZ Reley

Contact Form : SPST , SPDT

Max. Allowable Current : 20A

Coil Type : Standard DC & AC

product icon 2 1

Features

  • High switching current up to 20A in small size.

  • Low power consumption; AC/DC coil available.

  • Proper insulation distance with 5,000VAC dielectric strength.

  • UL Class F insulation available.

  • In accordance with IEC 60335-1 and IEC 60730-1.

  • Halogen Free series available.

  • Comply with RoHS and REACH regulations.

Download

Technical Product Information

EZ-Relay.pdf

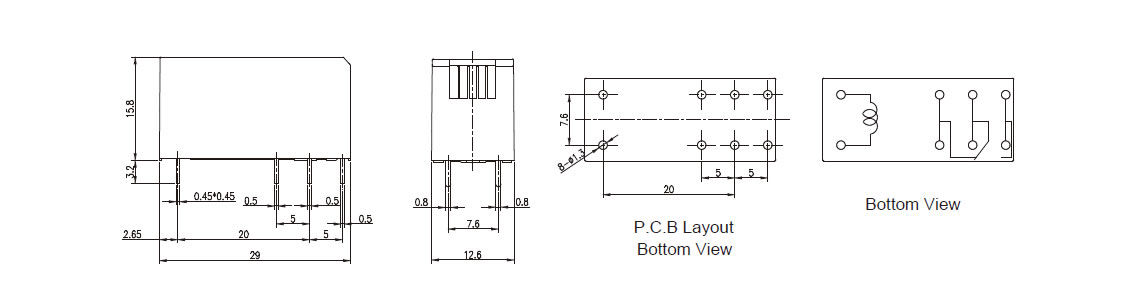

Dimension

EZ cad

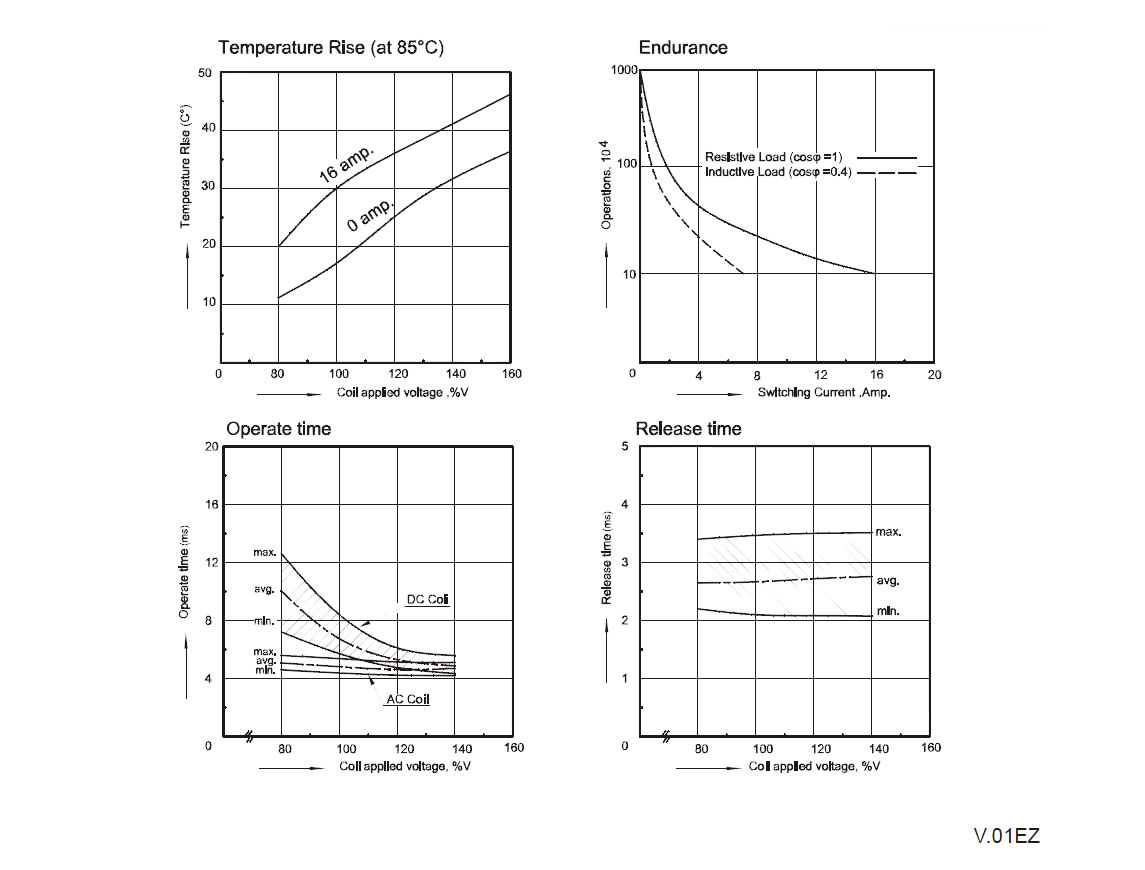

Referencn DATA

EZ data

Tags: SPST(1A1B)SPDT (1C)20ADC 6VDC 9VDC 12VDC 15VDC 18VDC 24VDC 48VDC 60VDC 110VDC 115VAC 24VAC 230VEZ
