Contact Form : SPST , SPDT
Max. Allowable Current : 8A
Coil Type : Standard DC
Features
-
Dielectric Strength up to 4,000VAC.
-
8mm safety distance between coil and contact.
-
Two pinning types available: 3.2 and 5.0mm.
-
In accordance with IEC 60335-1 and IEC 60730-1.
-
Comply with RoHS and REACH regulations.
Download
Technical Product Information

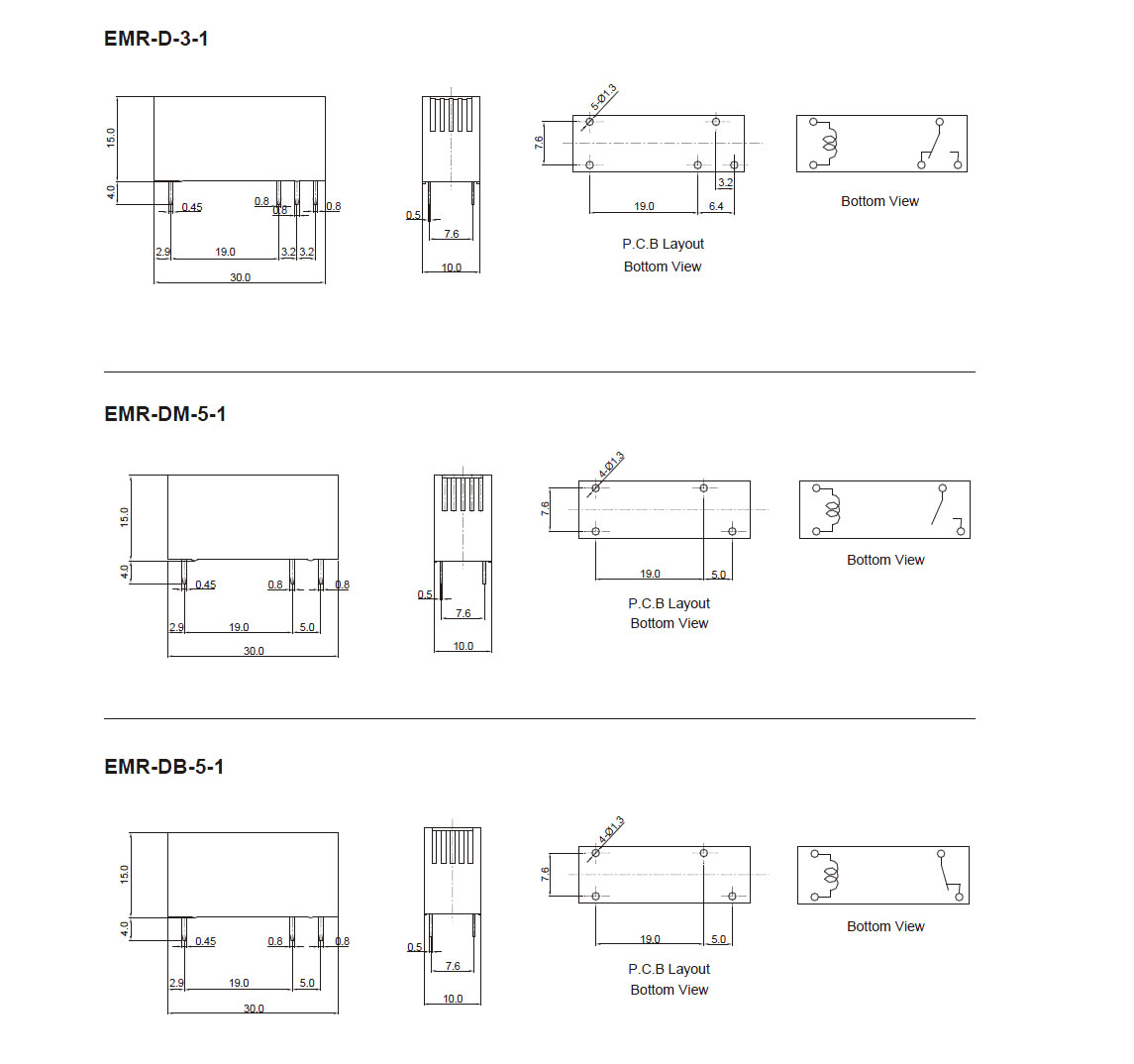

Dimension
Reference
